How to Install a Train Horn on a GMC Sierra (2014–2026)

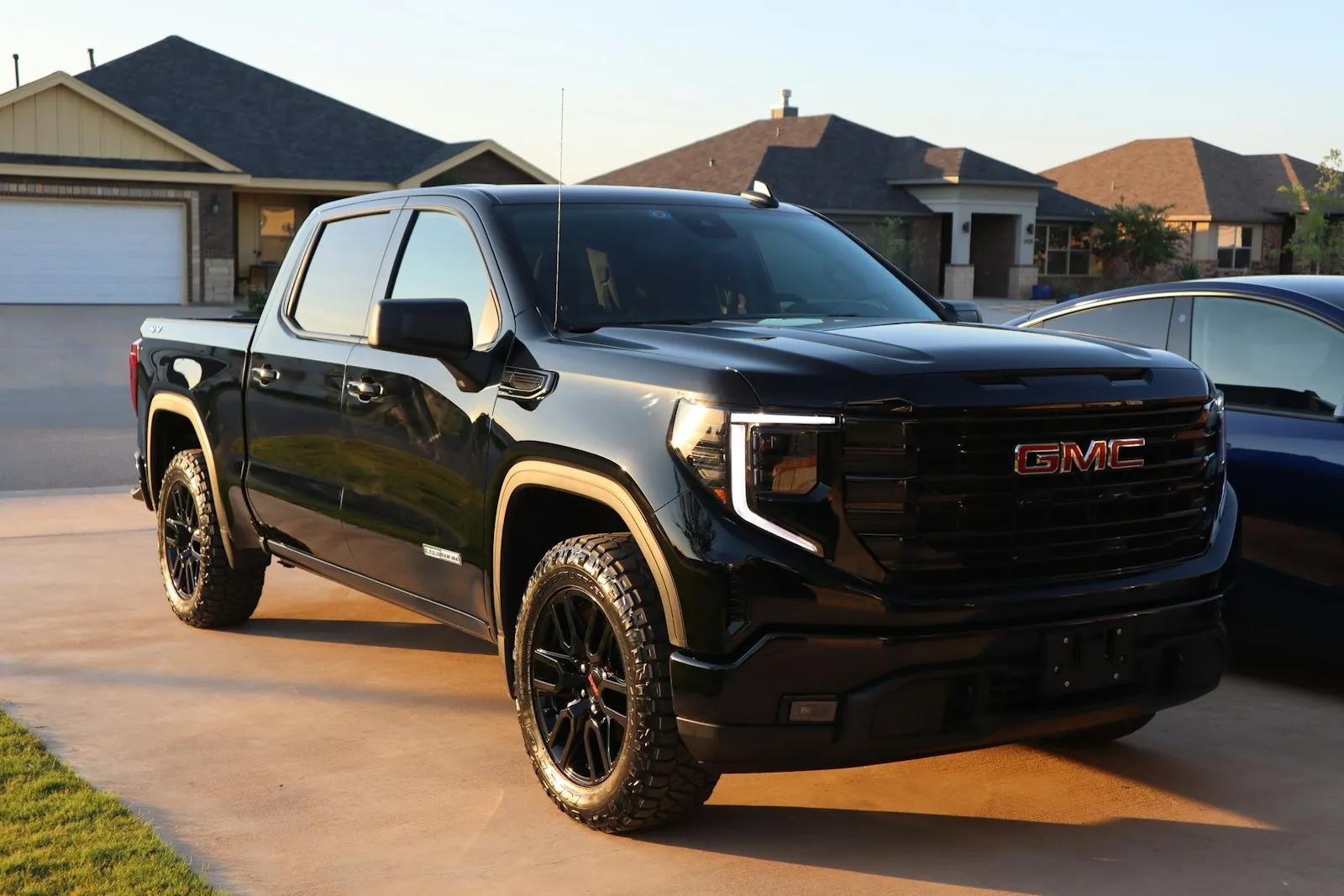

The GMC Sierra 1500 shares its platform with the Chevrolet Silverado 1500 — both are GM body-on-frame 1500s built on the K2 platform (2014–2018) and the T1 platform (2019–2026). Mount points, wiring layout, and kit fitment are nearly identical between the two trucks. If you’re a Sierra owner, the Silverado install guide applies to your truck almost line-for-line; this page consolidates the same information with Sierra-specific kit references and forum threads from GM-Trucks.com and the GMC Sierra Forum.

Quick stats

• Difficulty: Moderate. You should be comfortable lowering the spare tire, accessing the engine bay fuse box, and tapping the OEM horn circuit.
• Time: 3–4 hours with a vehicle-specific direct-fit kit (Kleinn Lil’ Bad Ass 220); 6–8 hours with universal brackets and custom routing.
• Cost: $1,000 entry-level Vevor / Kleinn kit up to $5,500+ for a HornBlasters Shocker XL or Nathan AirChime K5LA install.
• Tools: Standard 1/4″ and 3/8″ socket sets, drill, wire crimpers, multimeter, fuse puller, MICRO2 add-a-circuit adapter.

Mounting options by generation

K2 platform (2014–2018)

• Spare tire location (most common): Universal spare-tire-delete brackets fit. The OEM spare hangs below the bed on a winch cable; remove the spare and the winch mechanism, install the bracket, and the train horn slides into the same envelope.
• Old exhaust mount: Per Duramaxforum.com discussions, some K2 builders use the old exhaust hanger mount on the frame to bracket the compressor. Saves drilling new holes.
• Behind front bumper: Trumpets only, with air chucks routed back through the engine bay.

Reference: HornBlasters’ 2014 OEM-tap procedure for Chevy Silverado/GMC Sierra — applies identically to the GMC Sierra of the same generation.

T1 platform (2019–2026)

• Direct-fit Kleinn Lil’ Bad Ass 220: Kleinn’s direct-fit kit for 2019–2024 GMC Sierra & Chevy Silverado 1500 is the easiest install path on the T1 platform. Pre-engineered to bolt directly to the T1 frame with no fabrication.
• Spare tire well: Same as K2 with slightly different bracket geometry.
• Under-hood compact (secondary battery location): Smaller kits like the Vixen VXO8805/3118 fit under the hood in the secondary battery tray location per GM-Trucks.com discussions.

Reference: GM-Trucks.com 2019–2025 Train Horns thread.

Recommended kits

Three kits ordered by price tier:

1. Kleinn Lil’ Bad Ass Model 220 — Direct-fit T1 platform kit (Kleinn product page). Bolt-on, no fabrication. Best entry option for 2019–2024 Sierra 1500 owners.
2. HornBlasters Conductor’s Special 228H — $649.99–$749.99. 147.7 dB Shocker XL trumpets on a 2-gallon tank.
3. Nathan AirChime K5LA Kit — $4,999.99–$5,199.99. Real locomotive horn at the 149.4 dB ceiling.

For portable / no-install alternatives see Milwaukee M18 and DeWalt 20V MAX hubs.

Step-by-step (Kleinn 220 direct-fit on a T1 Sierra 1500)

This sequence assumes a 2019–2026 Sierra 1500 with the Kleinn Lil’ Bad Ass 220 direct-fit kit. Adapt for K2 or universal brackets. Total time: 3–4 hours.

1. Disconnect battery negative terminal.
2. Lower the spare tire using the OEM winch crank.
3. Remove the spare tire winch mechanism. 13 mm bolts on the crossmember. Save the hardware.
4. Test-fit the Kleinn 220 bracket. Should bolt directly to factory holes on the 2019–2026 T1 platform.
5. Bolt the bracket to the frame rails. Torque to Kleinn spec.
6. Mount the train horn assembly to the bracket using included clamps / U-bolts.
7. Mount the air tank and compressor within the Kleinn 220 enclosure (it integrates them in one bracket).
8. Run air lines between compressor, tank, solenoid valve, and horns. PTC fittings on Kleinn kit.
9. Run the compressor power wire (8 AWG positive + ground) from the engine bay battery. Inline 30 A fuse within 12″ of battery positive.
10. Run the solenoid trigger wire (18 AWG) from the cab to the solenoid.
11. Tap into the OEM horn fuse circuit (MICRO2 add-a-circuit method, see below).
12. Ground the solenoid to the vehicle frame on bare metal.
13. Reconnect battery, prime the system (≈ 6 min 45 s to fill 5-gallon tank from 0 → 150 PSI).
14. Test fire the horn first by manually shorting the solenoid trigger to 12 V, then via the OEM steering wheel button.

Wiring to the steering wheel button

Same MICRO2 add-a-circuit method as the Silverado and F-150. HornBlasters published year-specific guides:

• 2014 onward: HornBlasters 2014 Silverado/Sierra fuse-tap guide.
• 2001–2013: HornBlasters 2001–2013 Silverado guide.

For the universal wiring topology (compressor relay + solenoid trigger circuits), see /install/by-task/wiring-diagram/.

Common problems

Distilled from GM-Trucks.com, Duramaxforum.com, and GMC Sierra Forum:

1. Bracket fits with adaptation. Universal spare-tire-delete brackets often need extra drilling for the Sierra-specific frame holes. Test-fit before committing.
2. Compressor near catalytic converter heat (T1). GM’s emissions hardware routes close to the spare tire location. Heat-shield the compressor or relocate to driver’s side frame rail.
3. MICRO2 adapter inserted backwards. Original fuse must be on interior terminals; new 10 A trigger fuse on exterior terminals.
4. Reversed compressor polarity. Symptom: motor grinds, doesn’t pump. Fix: swap compressor +/− leads.
5. Tank pressure drops fast on small kits. Normal for 2-gallon tanks (3–5 sec blasts then 55-sec recovery). Upgrade to 5-gallon for longer blasts.
6. Vibration noise into cab. Use rubber-isolated mounts between the compressor and the bracket.
7. AT4 / Denali trim differences. Some higher-trim packages have factory accessories or different wiring routing in the spare tire well. Verify clearance before final mount.

Legal reminder

A train horn install on a Sierra 1500 is legal in most U.S. states for the horn hardware itself, but using it on a public road typically violates state vehicle codes. Most states cap horn output around 110 dB. See the legal hub and state legality lookup.

Sources

• Kleinn — Lil’ Bad Ass Model 220 Direct-Fit for 2019–2024 GMC Sierra & Chevrolet Silverado 1500 (T1 direct-fit kit; engineered for both Sierra and Silverado)
• HornBlasters — Connecting Train Horns to OEM Horn (2014 Chevy Silverado / GMC Sierra) (K2 fuse-tap procedure)
• HornBlasters — Connecting Train Horns to OEM Horn (2001–2013 Chevy Silverado / GMC Sierra) (older fuse-tap reference)
• GM-Trucks.com — Train Horns 2019–2025 Silverado/Sierra discussion
• GM-Trucks.com — Kleinn Train Horn install on 2014–2018 Silverado/Sierra
• Duramaxforum — Train Horn Installation discussion

We do not perform hands-on installs. This guide aggregates publicly available install documentation and community discussions. Verify all wiring against your vehicle’s year-specific service manual before powering up.
