Train Whistle vs Train Horn: What's the Difference?

A train whistle and a train horn are not the same thing. A whistle is a steam-powered acoustic device that uses a jet of steam passing through a slot to produce sound; it was the standard signaling device on every steam locomotive from the 1830s through the 1950s. A train horn is an air-powered diaphragm-and-bell device that replaced the whistle as railroads transitioned from steam to diesel locomotion in the 1940s–60s. The two produce different sounds and use fundamentally different physics. This guide covers the historical and acoustic distinction.

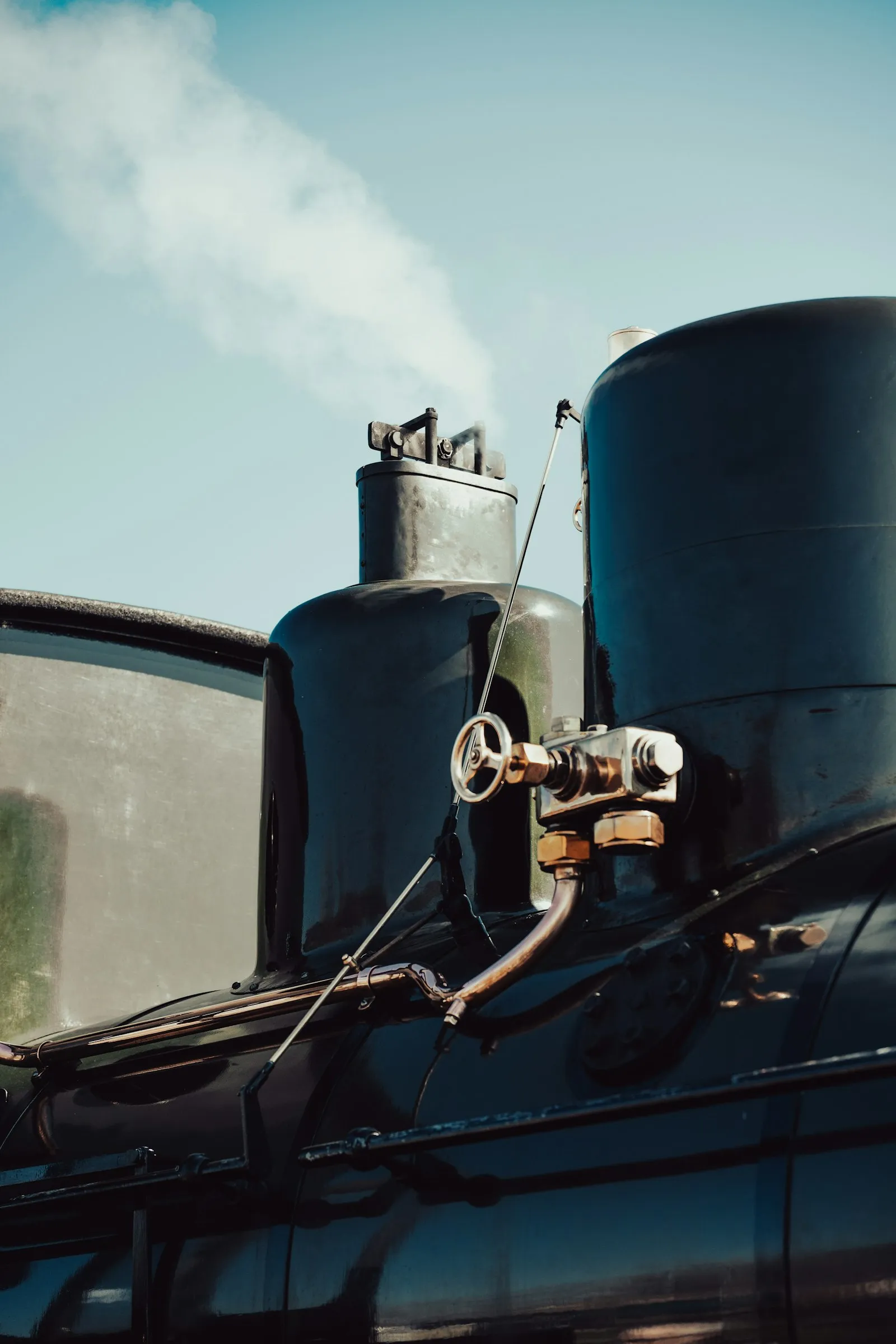

How a steam train whistle works

A train whistle is functionally a giant flue pipe — the same family of acoustic device as an organ pipe or a recorder. Its parts:

• Bowl (or cup) — a metal chamber, typically brass or bronze, with a defined internal volume that sets the fundamental frequency.
• Slot (or fipple) — a precise machined opening at the bottom of the bowl through which steam enters.
• Sharp edge — the steam jet strikes this edge as it enters the bowl, producing turbulence that excites the bowl’s resonant frequency.
• Steam supply — high-pressure steam (100–200 PSI) from the locomotive’s boiler, controlled by a manual lever in the cab.

When the engineer pulls the whistle cord, steam rushes through the slot, hits the edge, and excites the bowl’s natural frequency. The result is a sustained tone whose pitch is determined by the bowl’s volume — common steam whistle frequencies were 100–500 Hz, with rich harmonic content that gives the steam whistle its haunting, mournful character.

Multi-chime steam whistles had several bowls of different sizes, all sharing a common steam supply. A 6-chime whistle plays six notes simultaneously — a more melodic sound than a single-chime, with characteristic chord intervals.

How a modern train horn works

A train horn — what every diesel and electric locomotive uses today — uses compressed air rather than steam, and a diaphragm rather than an edge-tone mechanism:

• Compressor on the locomotive (driven by the diesel engine or electrically) keeps the main reservoir charged at 130–140 PSI.
• Solenoid valve (or pneumatically-actuated valve, on older units) opens when the engineer pulls the horn lever.
• Diaphragm in the horn body vibrates as compressed air rushes past it.
• Bell amplifies and shapes the diaphragm’s vibration into a directional sound wave.

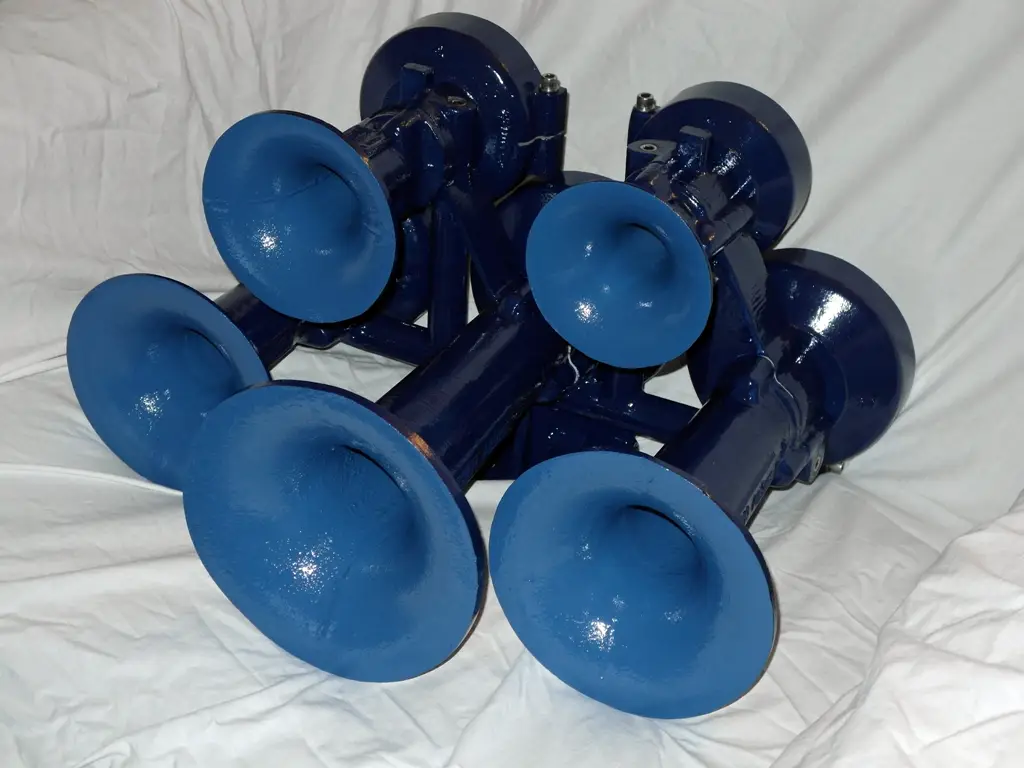

The fundamental frequency comes from the bell length, not from a resonant chamber: longer bells produce lower notes (Wikipedia: Train horn). Most modern locomotive horns are chord horns with multiple bells in one manifold playing different notes simultaneously — most notably the Nathan AirChime K5LA, which plays a B major 6th chord (D♯, F♯, G♯, B, D♯).

For a deeper technical breakdown of horn physics, see How Do Train Horns Work?.

Why railroads switched from whistles to horns

The transition from steam whistles to compressed-air horns happened because railroads transitioned from steam locomotives to diesel-electric locomotives starting in the 1940s. The reasons:

• Steam whistles need steam. Diesel locomotives don’t produce steam; their power comes from a diesel engine driving an electric generator. Without a boiler, there’s no high-pressure steam to drive a whistle.
• Compressed air is already onboard. Diesel locomotives already have an air system for the brakes (the same air that fills the trains’ brake reservoir). Adding a train horn just taps that existing air supply.
• Horns project further. Properly-designed chord horns produce more directional sound than steam whistles at the same total acoustic power. The Nathan K-series horns project measurably further than a comparable steam whistle.
• Maintenance simplicity. A diaphragm-and-bell horn has fewer wear parts than a steam whistle’s slot/edge/cup geometry.

By 1960 nearly every revenue locomotive in North America was diesel-electric or electric, and steam whistles had been retired except on heritage equipment.

Sound differences (what your ear hears)

Sonically, whistles and horns sound very different:

Aspect	Steam whistle	Compressed-air horn
Attack	Gradual ramp-up as steam fills the bowl	Sharp, immediate (“instant on”)
Steady tone	Wavering, with breath-like variations	Steady, mechanical
Harmonic content	Rich, organ-like — strong upper partials	Cleaner, more directional
Chord voicing	Simple intervals (single, three-chime, six-chime)	Complex chord intervals (B major 6th, etc.)
Mood / character	Mournful, “lonesome” — associated with steam-era romance	Authoritative, alarm-like
Audibility through wind	Better in calm air, attenuates in turbulence	More directional, less wind-sensitive

If you’ve heard old movie footage of steam trains, the haunting wail of the whistle is what makes those scenes feel “lonesome American railroad” in a way that a modern K5LA — which sounds more like a chord — doesn’t replicate. Both are loud; only the steam whistle has the recognizable steam-jet character.

Heritage and tourist railroad whistles

Steam whistles still exist in service on heritage and tourist railroads that operate restored steam locomotives. Notable examples include the Strasburg Rail Road (Pennsylvania), the Cumbres & Toltec Scenic Railroad, the Durango & Silverton Narrow Gauge, and various preserved steam excursions. Hearing a real steam whistle in person requires visiting one of these operations or a railroad museum during a steam day.

For modern aftermarket train horns, steam-whistle replicas don’t exist as serious products — without an onboard steam source, you’d have to build a 200 PSI steam generator, which is impractical and dangerous. All modern aftermarket “train horns” (including BossHorn portables, HornBlasters Shocker XL, and Nathan AirChime K5LA aftermarket) are compressed-air horn-type units, not whistles.

Common confusions

A few things that get mixed up:

• “Train whistle” used colloquially. People often say “train whistle” when they mean any train signaling sound, including modern horns. Acoustically these are different devices; the language is loose.
• Steam whistle “sound effects” online. Many “train whistle” recordings on stock-audio sites are actually compressed-air horn recordings labeled inaccurately. Check the era and recording context to know which one you’re hearing.
• Locomotive horns called “whistles” in operating rules. Some older railroad rule books refer to the horn signal as a “whistle signal” because the operating-rules vocabulary predates the steam-to-diesel transition. The signal pattern (long-long-short-long for grade crossings) is the same regardless of which device produces the sound — see our horn-pattern glossary entry.
• The FRA Train Horn Rule applies to both. 49 CFR Part 222 (“Train Horn Rule”) covers any device used to signal at grade crossings, including legacy steam whistles on heritage operations.

Frequently asked questions

Can I install a steam whistle on my truck?

No, not realistically. A real steam whistle needs 100–200 PSI of steam from a boiler. There’s no practical onboard steam source for a road vehicle.

Are there electronic devices that mimic a steam whistle?

Yes — DCC sound decoders for model trains and some entertainment products use digital recordings of real steam whistles. These are not loud enough to function as actual signaling devices on a road vehicle.

Do diesel locomotives ever sound like steam whistles?

No. The Nathan AirChime K-series and Leslie Supertyfon horns used on modern locomotives produce a fundamentally different timbre from steam whistles. They’re recognizable as separate categories of sound to most listeners.

What was the loudest steam whistle ever made?

Multi-chime whistles on large steam locomotives could reach ~135–140 dB at close range. The Nathan AirChime K5 at 149.4 dB is louder than any production steam whistle ever measured (per HornBlasters’ world’s-loudest ranking).

When was the last steam whistle in regular service?

Mainline North American freight and passenger service had ended steam whistle use by 1960 with the completion of the dieselization wave. Heritage railroads continue using steam whistles to this day on excursion services.

Which sound is more “American”?

Subjective. The steam whistle is more strongly associated with 19th-century and early-20th-century railroad culture — the sound that defined the era of cross-country rail expansion. The Nathan K5LA is more strongly associated with modern freight and Amtrak operations from the 1970s onward. Both are part of the American railroad sonic vocabulary.

Sources

• Wikipedia — Train horn (chord-horn vs whistle physics, Nathan AirChime / Leslie history)
• Wikipedia — Steam whistle (whistle physics, slot-and-edge tone production)
• Wikipedia — Nathan Manufacturing (K5 149.4 dB independent measurement, K-series chord configurations)
• SoundTraxx — Locomotive Airhorn History (1940s–60s steam-to-diesel transition timeline)
• HornBlasters — World’s Loudest Train Horns (modern horn SPL rankings)
• Federal Railroad Administration — Train Horn Rule (49 CFR Part 222 covers all locomotive signaling devices)

We do not perform hands-on testing — see our methodology for how we evaluate manufacturer claims.
