3D Printed Train Horn Designs

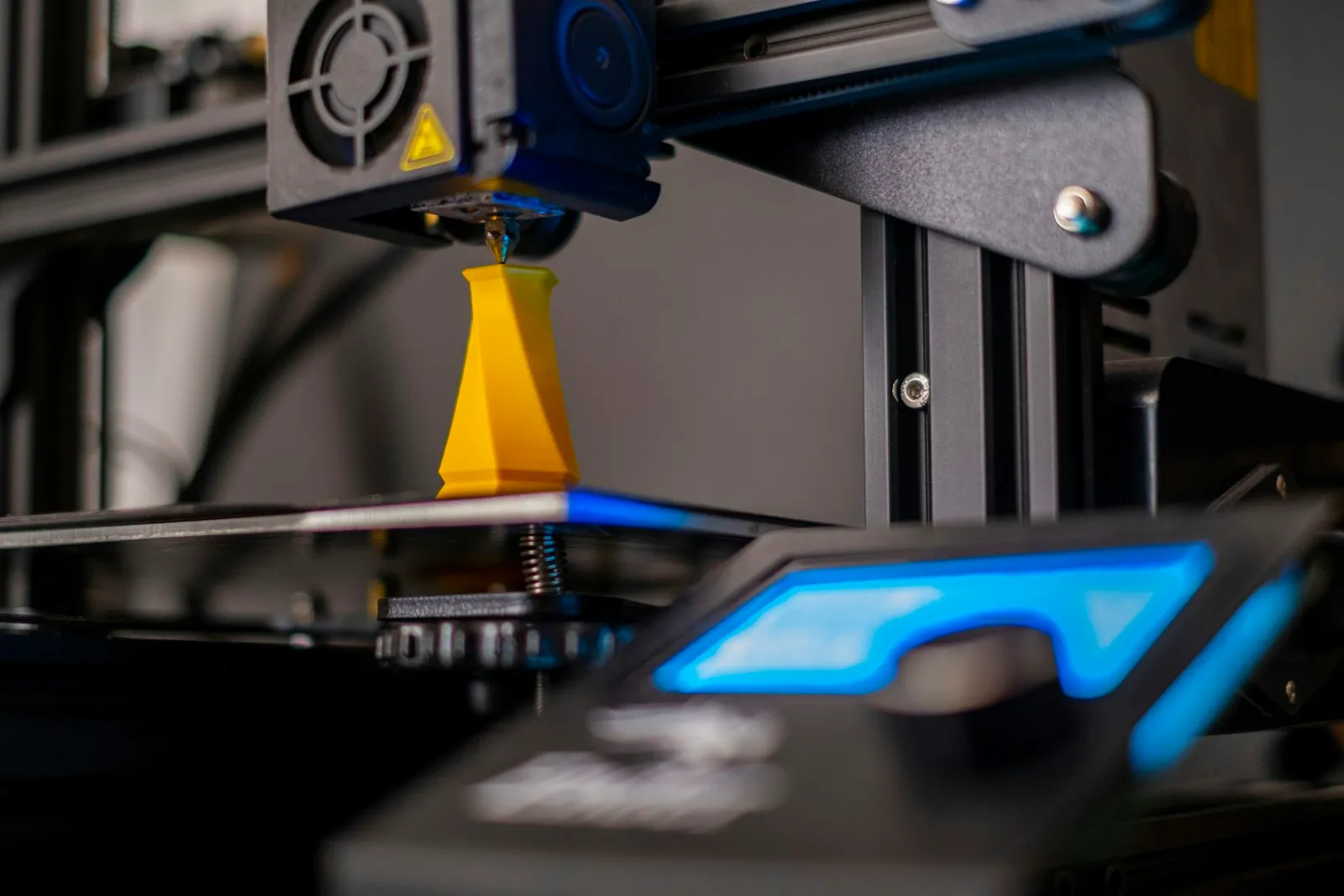

FDM-printed PLA or PETG bell and chamber. Lower output than PVC due to thinner walls flexing under pressure, but lets you tune chord intervals digitally before printing.
Why 3D print a train horn?
- Custom chord intervals. CAD lets you tune bell length to specific frequencies. Aim for any documented chord — Nathan K5LA's B major 6th, K5HL's C minor 7♭5, custom voicings.
- Form factor flexibility. Print bell shapes that don't exist commercially.
- Material accessibility. $5–$15 in PLA / PETG filament for a complete multi-chime build.
- Educational. Print-fail-test-iterate cycle is valuable for learning chord-horn acoustics.
For the underlying chord-horn physics see our how do train horns work guide.
Output limits
Realistic 3D-printed train horn output is 95–115 dB at 3 ft. Lower than PVC (~120 dB) and far below cast aluminum (149 dB Nathan K5). The reason: FDM print walls (typically 1–3 mm thick) flex under pressure. The diaphragm gets less efficient acoustic coupling than rigid material allows.
To approach PVC-class output you need:
- Thicker walls (4–6 mm) — more material, longer print times, higher cost
- SLS / MJF printing with stronger materials (nylon, glass-filled) — requires print farm, not home printer
- Resin printing with high-modulus resins — better stiffness but UV-fragile and expensive
- Reinforcement — wrap printed bell with carbon fiber or fiberglass
Materials
- PLA — easiest to print, brittle under pressure cycling, breaks down in UV. Avoid for permanent installs.
- PETG — better choice for pressurized parts. Tougher, more UV-resistant, prints almost as easily as PLA.
- ABS — strong but warping during print is a problem without enclosed-chamber printer.
- Nylon (PA12) — strong and ductile, but harder to print on consumer FDM printers.
- Carbon-fiber-filled PETG / nylon — best output for FDM if you want structural rigidity.
Where to find designs
- Thingiverse — search "train horn" and "air horn" for community-uploaded STL files. Quality varies; verify the model's wall thickness and pressure rating before printing.
- Printables (Prusa) — newer platform with curated designs.
- GrabCAD — engineering-focused design library, fewer hobbyist train horn designs but higher engineering quality on what's there.
- CAD it yourself — Fusion 360, OnShape (free for hobbyists). Design bell length to target frequency using the bell-length-to-frequency relationship in our how-it-works guide.
Multi-chime 3D printed chord
Same target frequencies as our PVC build guide for a Nathan K5LA-style B major 6th chord:
- Lowest bell: ~22 cm length (D♯ ~311 Hz)
- Second bell: ~18 cm (F♯ ~370 Hz)
- Third bell: ~16 cm (G♯ ~415 Hz)
- Fourth bell: ~13 cm (B ~494 Hz)
- Fifth bell: ~11 cm (D♯ octave ~622 Hz)
Print all five and feed from a common air manifold. Tune by ear — bell-length-to-frequency varies with diaphragm tension and bell taper.
