Installing a Train Horn on Modern CAN Bus Vehicles: BCM Horn Circuits

Modern horn circuits run through the BCM, not a simple switch. Here's how to safely trigger a train horn on a CAN bus vehicle with one relay and zero fried modules.

By Train Horn Hub Editorial Published August 23, 2026 Updated August 23, 2026 8 min read

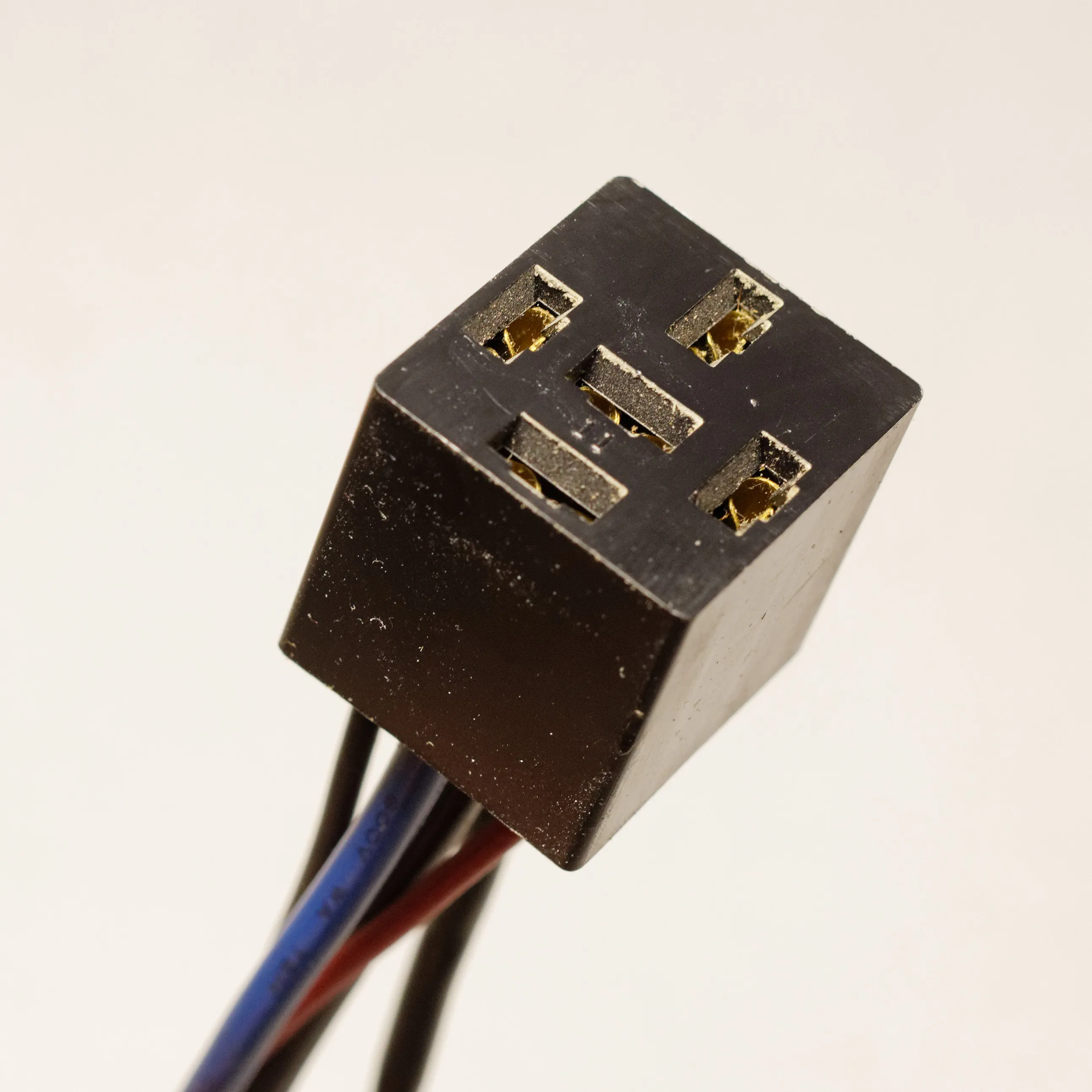

Automotive relay socket with wiring, the kind used to trigger a train horn from a factory horn circuit

Press the horn pad on almost any truck built in the last two decades and you are not closing a horn circuit — you are sending a request to the body control module (BCM). That is why the old “splice into the wire at the steering wheel” trick fails on a modern CAN bus vehicle, and why a train horn install now starts with understanding where the computer ends and the real 12V wiring begins.

Why the Horn Wire Isn’t a Simple Switch Anymore

Older vehicles ran the horn like a doorbell: button, wire, horn, done. Modern vehicles route almost everything through networked computers instead. The CAN (Controller Area Network) bus — development started at Bosch in 1983, with the protocol released in 1986 — first appeared in a production car on the 1991 Mercedes-Benz W140, and today a single vehicle can carry as many as 70 electronic control units talking over a two-wire differential bus. OBD-II diagnostics have been mandatory on every car and light truck sold in the US since model year 1996, and body electronics followed the same computerization path.

The practical consequence for horn installs: your steering-wheel horn pad is now a low-current input to the BCM, not a power switch. Per CarParts.com’s technical explainer, the horn button acts as a normally open switch that signals the BCM, and the BCM then delivers power to the horns — in some vehicles through a relay that is built into the fuse-box module itself, with no separate serviceable relay at all.

So you cannot grab the horn-pad wire in the column and expect it to carry an aftermarket load, and you should never back-feed power into a BCM output. The good news: there is still one place on every vehicle where honest, switched 12V shows up.

How a BCM-Controlled Horn Circuit Actually Works

Here is the full chain on a typical late-model truck:

You press the horn pad — a normally open switch closes and signals the BCM (often through the clockspring in the steering column).
The BCM decides the horn should sound and energizes the horn relay — either a standalone relay in the underhood fuse box or a driver integrated into the module.
The relay output sends battery voltage down a dedicated wire to the factory horn mounted at the front of the vehicle.
The factory electric horn sounds, drawing only about 5–6 amps (2.5–5 amps for compact flat-diaphragm designs).

Everything upstream of that last wire is computer territory. Everything downstream — the wire that lands on the horn itself — is plain old switched 12V. That distinction is the entire install strategy.

The Safe Tap Point Is at the Horn, Not the Steering Wheel

HornBlasters’ factory horn button integration guide is built around exactly this principle: skip the steering wheel and column entirely and tap the OEM horn circuit at the front of the vehicle. The factory horn typically sits behind the front grille, ahead of or beside the radiator. Its connector almost always has two wires — the positive is usually the brighter color (white, yellow, orange, green) and shows +12V only when someone presses the horn pad.

That wire is perfect as a relay trigger. When the BCM fires the factory horn, your added relay coil sees the same 12V pulse and closes a completely separate, properly fused circuit for the train horn’s solenoid valve or compressor. The BCM never knows the train horn exists — it only ever drives the light load it was designed for.

If you have not wired an automotive relay before, read our full train horn relay wiring guide first — the pin logic below will make much more sense.

One-Relay Wiring, Step by Step

This is the standard “both horns honk together” setup from Horngun’s factory-button wiring guide, using a common 4-pin automotive relay:

Locate the factory horn behind the grille and unplug its connector. Identify the positive wire: back-probe it with a multimeter while a helper presses the horn pad — it should jump to +12V.
Connect relay pins 85 and 86 (the coil) across the two wires at the stock horn. Coil polarity does not matter, which is convenient on ground-switched circuits (more below).
Run pin 30 to the battery positive terminal through an inline fuse — 20–40 amps depending on your compressor, mounted close to the battery — using 10–12 AWG wire on the power side.
Run pin 87 to the train horn solenoid valve or compressor positive terminal. Ground the negative side to the battery or clean chassis metal.
Test: press the horn pad. The stock horn sounds, the relay clicks, and the train horn fires — both in parallel, with the heavy current coming straight from the battery.

Want to choose between horns instead of blasting both? Swap in a 5-pin SPDT relay per HornBlasters’ toggle-switch diagram: cut the OEM positive wire 6–8 inches from the horn connector, feed the steering-wheel side into pin 30, the stock horn onto pin 87, the train horn valve onto pin 87A, a dash toggle (or a factory upfitter switch) onto pin 86, and pin 85 to ground. The wheel still triggers everything; the toggle picks which horn answers.

Positive-Trigger vs Ground-Trigger Circuits

Most late-model trucks switch the positive side: the BCM or relay sends battery voltage to the horn when you press the pad. An F-150 forum deep-dive on this exact question confirmed the modern F-150 is positive-trigger — 12V appears on the horn wire only while the button is pressed — while noting that years ago many horn circuits were ground-side triggered instead, with the horn fed constant power and the button completing the ground path.

You do not need to guess. Two quick multimeter checks at the horn connector tell you everything:

Voltage appears on one wire only while the pad is pressed → positive-switched. Tap that wire as your relay trigger.
One wire shows constant 12V and the other drops to ground when the pad is pressed → ground-switched. Wire the relay coil across both horn wires and it still works, since coil polarity doesn’t matter.

Either way, the relay coil is the only thing you ever add to the factory circuit — a load far lighter than the horn it already drives.

Mistakes That Kill BCMs (and Clocksprings)

Powering the compressor from the horn wire. A train horn compressor draws roughly 12–20 amps — double to quadruple what the 5–6 amp factory horn circuit was built for. That melts thin factory wire and blows fuses at best.
Tapping inside the steering column. The clockspring that carries the horn signal through the rotating wheel is fragile and expensive; overloading or disturbing it is a common self-inflicted repair bill.
Splicing into BCM, ECU, or ignition fuses for power. Install guides are blunt about this: pulling aftermarket loads through computer-protected circuits risks irreversible module damage. Take power from the battery through your own fuse.
Skipping the inline fuse, or mounting it far from the battery. An unfused 10 AWG run to a compressor is a fire waiting for a chafe point.
Assuming your trigger polarity instead of measuring it. Thirty seconds with a multimeter beats an afternoon of head-scratching.

If You’d Rather Not Touch the Factory Circuit at All

The factory-button tap is the cleanest “honk once, everything sounds” setup, but it is not mandatory. A dedicated push button or toggle wired straight from a fused battery feed to the solenoid valve bypasses the BCM question entirely — we compare every option in our train horn activation guide. Trucks with factory upfitter switches can use one of those as the horn selector on pin 86 of the SPDT setup, per HornBlasters’ upfitter wiring page.

And if your vehicle takes computerization to its logical extreme — an EV with a small 12V system and no engine-bay real estate — the same tap-at-the-horn logic still applies, but with extra amp-budget math. Our Tesla and EV train horn install guide covers that scenario, and fully portable battery-powered horns remain the zero-wiring escape hatch for any vehicle.

Keep Reading

Sources

CAN bus — Wikipedia — Bosch CAN development (1983/1986), 1991 Mercedes-Benz W140 first production use, up to 70 ECUs per vehicle, two-wire differential bus, US OBD-II mandate from model year 1996.
Vehicle horn — Wikipedia — factory electric horn current draw of 5–6 amps (2.5–5 amps for flat-diaphragm designs).
Horn Relay: What Is It and How to Tell If It’s Faulty — CarParts.com — horn button as normally open BCM input, BCM-activated relays, relay functions integrated into modules with no separate relay.
Factory Horn Button Integration Guide for Train Horns — HornBlasters — tapping the OEM horn circuit at the horn behind the grille, +12V-when-pressed test, wire color identification.
Toggle Between Stock Horn & Train Horn (SPDT Relay) — HornBlasters — 5-pin SPDT pin assignments (30/87/87A/85/86) and cutting the OEM positive wire 6–8 inches from the connector.
Turn Your Horns On/Off Using an Upfitter Switch — HornBlasters — using a factory upfitter switch as the horn selector on pin 86.
Wire a Train Horn to Your Factory Horn Button — Horngun — 4-pin relay wiring (85/86 coil across stock horn wires, coil polarity irrelevant), compressor draw of 12–20 amps, 20–40 amp inline fuse, 10–12 AWG power wiring, clockspring damage risk.
Positive/Negative Factory Horn Trigger — F150 Forum — modern F-150 positive-trigger confirmation and history of ground-side-triggered horn circuits.
How to Install a Train Horn on a Truck — trainhornfortruck.com — warning against tapping ECU/BCM/ignition fuses due to module damage risk.
