Train Horn Air Tank Size Guide: 1, 2, 3 & 5 Gallon

Your train horn air tank is the gas tank of the whole system: it decides how long you can lean on the button before the trumpets fade to a wheeze. Picking between a 1, 2, 3, or 5-gallon tank is really a question about how much honk you want stored and waiting.

What Tank Size Actually Controls

A train horn doesn’t make sound from electricity. The compressor slowly fills a steel tank with pressurized air, and when you hit the button, that stored air dumps through the trumpets all at once. The tank size sets your reserve. A small tank holds a couple of short toots; a big tank holds a long, locomotive-style blast plus enough left over for a few more.

The other thing tank size influences is how often the compressor kicks on. A bigger tank means more honks between refills, so the compressor runs less frequently (but longer each time it does). If you want the full picture of how the compressor, tank, and trumpets work together, start with our explainer on how train horns work.

Two numbers matter alongside gallons: operating pressure and horn air consumption. Consumer kits usually run at 80-120 psi, while authentic locomotive horns want 140-150 psi to hit their rated volume. Drop the pressure 30-40% and you can lose 10-15 dB of output. A loud 4 or 5-chime horn also eats air far faster than a single trumpet, so the same tank gives you fewer blasts on a big horn. For the pressure side of the equation, see our train horn PSI guide.

The Rule of Thumb: Roughly 2 Seconds Per Gallon

Here’s the back-of-the-napkin math installers use: at full pressure, each gallon of stored air is worth roughly 2 seconds of continuous honk before the tank drops below a usable level. It’s an estimate, not a guarantee — a thirsty 5-chime horn will beat that and a small single trumpet will exceed it — but it’s close enough to plan around.

Using that rule plus published figures, here’s how the common sizes stack up:

Tank size	Approx. continuous honk	Short 1-sec blasts (at 150 psi)	Best for
1 gallon	~2 sec	2-3	Compact kits, single/dual trumpets
2 gallon	~4 sec	a handful	Entry-level truck setups
3 gallon	~6 sec	several	Daily-driver 3 & 4-chime horns
5 gallon	~10 sec	10-15	Big horns + onboard air

The two anchor points in that table are sourced directly: a 1-gallon tank at 150 psi gives about 2-3 short one-second blasts, and a 5-gallon tank at 150 psi gives roughly 10-15. The middle rows are interpolated from the 2-second-per-gallon rule, so treat them as ballpark figures.

1 & 2 Gallon: Compact and Entry-Level

Small tanks exist because space is tight and budgets are real. A 1-gallon tank tucks almost anywhere — behind a bumper, under a seat, in a tight engine bay — and it’s the floor for any real train horn sound.

The trade-off is obvious: you get a couple of short blasts and then you’re waiting on the compressor. Plenty of budget kits ship with a tiny tank for exactly this reason. The VEVOR 4-trumpet kit, for example, comes with a 0.8-gallon (3-liter) tank and a small 12V compressor cycling between about 90 and 120 psi — enough for a quick, attention-grabbing toot, not a sustained lean-on-it honk.

• Fits in tight spaces where nothing else will
• Cheapest way into a real air horn
• Lighter weight, less to mount

• Only 2-3 short blasts before recharge
• Compressor cycles constantly if you honk a lot
• No reserve for long, dramatic blasts

A 2-gallon tank doubles your reserve to roughly four seconds and is the practical floor for most pickup owners who want the horn to feel substantial rather than novelty.

3 Gallon: The Daily-Driver Sweet Spot

For most trucks running a 3 or 4-chime horn, a 3-gallon tank is the sweet spot. You get around six seconds of honk — long enough for a proper locomotive blast — and several short toots stacked up before the compressor has to catch up. It’s large enough to feel generous but small enough to mount under a truck bed without a fight.

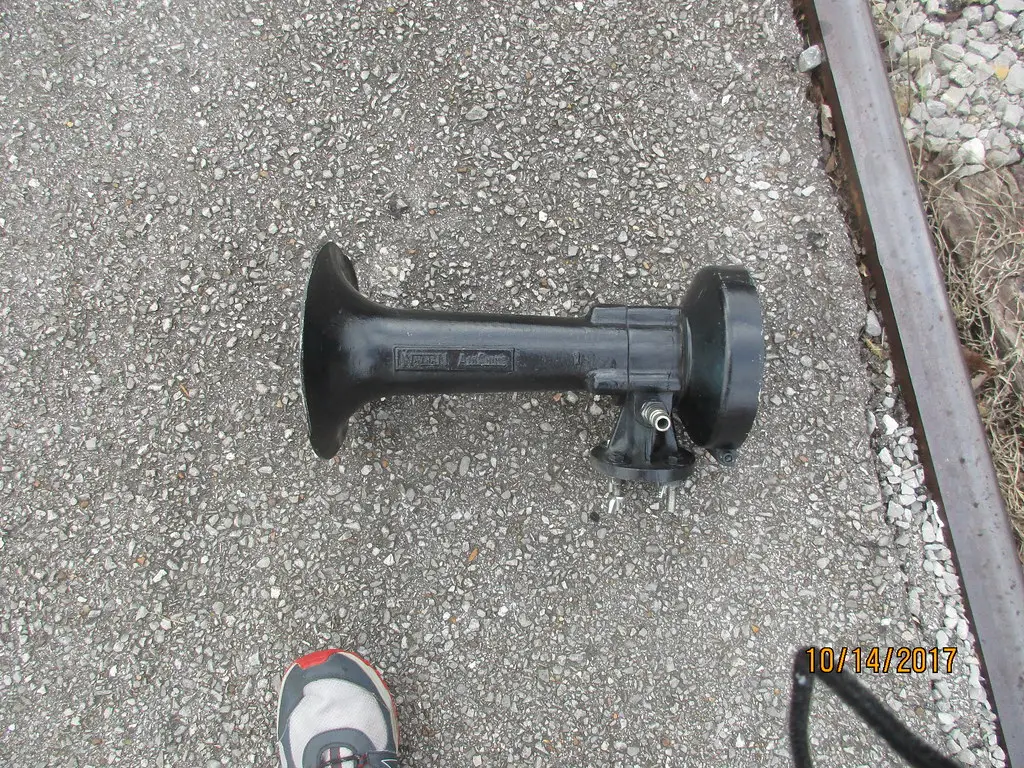

This is the size most mid-range kits are built around. Industry sizing guidance pairs a 3-gallon tank at 150 psi with a compressor rated around 1.5 CFM or better, which refills an empty tank in roughly 3-4 minutes (faster with a stronger compressor). For a high-consumption horn like a Nathan AirChime K5LA, a 3-gallon tank is considered the minimum for reasonable street use.

• Best balance of honk length, refill time, and mounting space
• Matches the 3 & 4-chime horns most people actually buy
• Room to grow without re-plumbing the whole system

5 Gallon and Up: Long Honks Plus Onboard Air

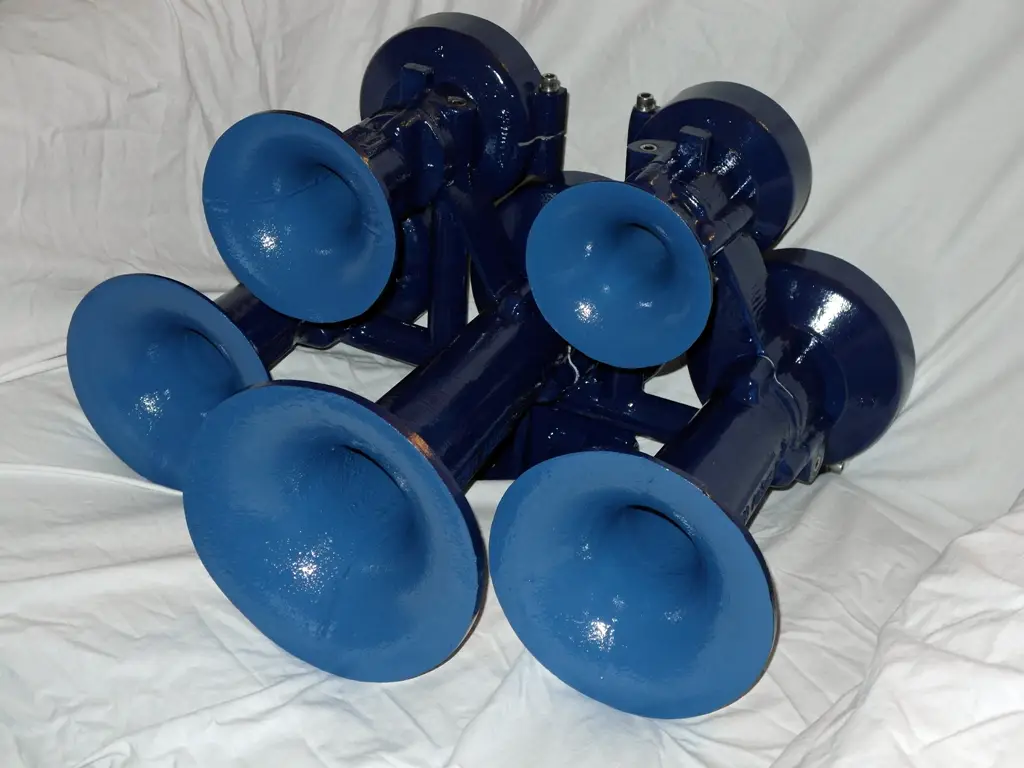

If you want that long, unbroken freight-train blast — or you want the system to double as onboard air for tires and tools — 5 gallons is the practical ceiling for a typical vehicle. It stores about ten seconds of continuous honk and 10-15 short blasts at 150 psi. For big 5-chime horns, a 5-gallon tank is the preferred size, not just the minimum.

Go bigger only if you have a specific reason. HornBlasters offers tanks all the way up to 8, 12, and 20 gallons, but those are for extended operation, multiple horns, or serious onboard-air builds. For a single loud horn on a pickup, more than 5 gallons is usually weight and space you won’t notice the benefit of.

The catch with a big tank is refill load. A 5-gallon tank takes a stout compressor to fill in a reasonable time — a Viair 444C (3.53 CFM at 0 psi) fills a 5-gallon tank from 0 to 200 psi in about 5 minutes 30 seconds. Whether your compressor can keep up matters more as the tank grows; see our compressor buying guide before you size up.

Match the Compressor to the Tank

A tank is only half the system. The compressor has to refill it, and a mismatched pair is the most common rookie mistake. Too small a compressor on a big tank means you honk, then sit through a long recharge. Too small a tank on a powerful compressor means the pump cycles constantly, which wears it out and trips its duty-cycle limit.

A typical setup uses a pressure switch that starts the compressor (cut-in) around 110-120 psi and stops it (cut-out) at 145-150 psi. The compressor’s duty cycle — how long it can run before it needs to rest — becomes critical with bigger tanks; a 100% duty-cycle unit like the Viair 444C (100% at 100 psi) can handle long fills, while a lighter compressor will overheat. We break this down in the compressor duty cycle guide.

Cut-in pressure

~110-120 psi (compressor starts)

Cut-out pressure

~145-150 psi (compressor stops)

Viair 380C

1.58 CFM at 0 psi, 23A draw

Viair 444C

3.53 CFM at 0 psi, 38A draw, 100% duty at 100 psi

Tank Material, Ports, and Draining

Most air tanks are steel — durable and cheap, but they need rust prevention because compressed air carries moisture. Stainless steel is offered in some sizes (commonly 5-gallon) for humid climates where rust is a real worry. Tanks typically have five to eight ports so you can plumb in the horn, compressor, pressure switch, gauge, and a drain.

That drain is not optional. Air tanks naturally collect water from the compressed air, and trapped moisture rusts the tank from the inside and can freeze your lines in winter. Crack the drain cock regularly — or fit an automatic drain valve — to release it. Our walkthrough on draining your train horn tank covers how often and how. Finally, make sure the tank’s max-PSI rating meets or beats your compressor’s output, and that it carries a safety blow-off valve rated for that pressure.

Sources

• HornBlasters — Complete Guide to Air Tanks — available tank sizes, steel vs. stainless, ports, drain and blow-off valves, and the “5-gallon is typically sufficient for train horns” recommendation.
• Train Horn Air System Sizing Guide (speedwaymedia / train-horn.com) — blasts per tank at 150 psi, operating-pressure ranges, the 30-40% pressure-drop / 10-15 dB output-loss figure, K5LA minimum tank size, pressure-switch cut-in/cut-out, and CFM/recharge guidance.
• Viair 380C Compressor — Viair Corp — 380C CFM and amp-draw specs.
• Viair 444C Dual Pack — Viair Corp — 444C CFM, duty cycle, and 5-gallon fill time.
• VEVOR 4-Trumpet Train Horn Kit — example budget kit with a 0.8-gallon (3 L) tank and 90/120 psi switch.
